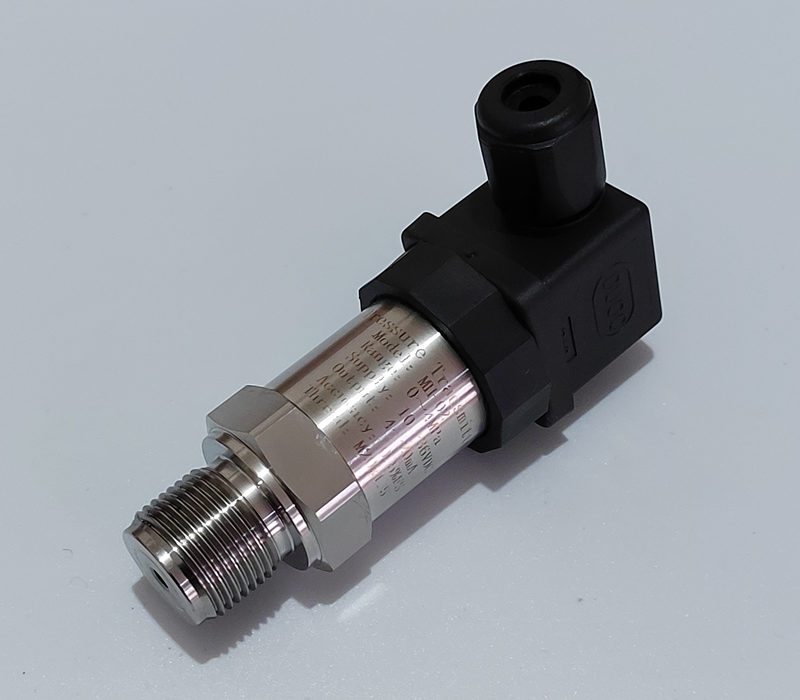

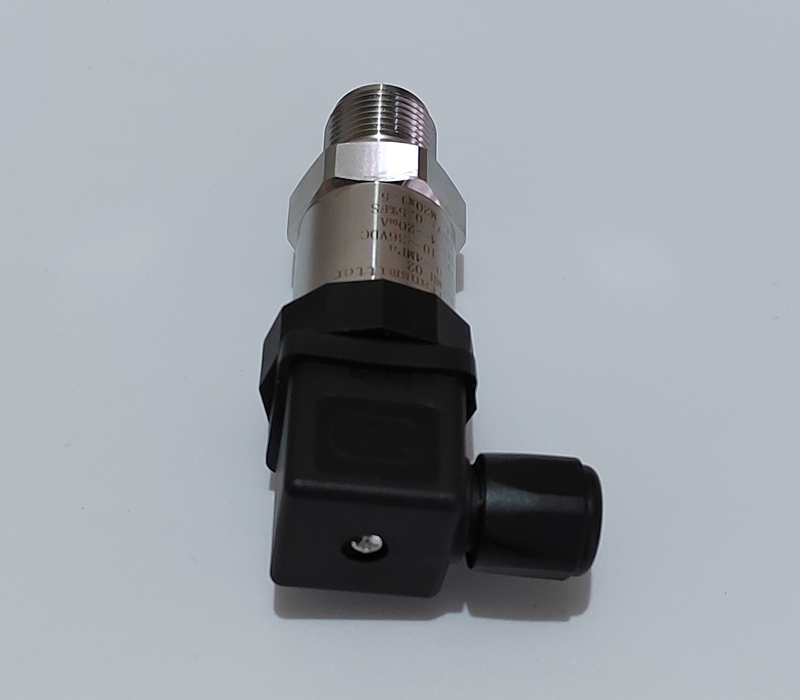

diffusion silicon pressure transmitter 4-20mA

Measuring range: 0~600Bar / 0-60Mpa
 Accuracy: ±0.5%FS, ±0.2%FS
 Output signal: 4-20mA, 0-5V, 0-10V
 Supply voltage: 10~36VDC
 Operating temperature: -40~105℃
 Compensation temperature: -20~80℃
 Operating current: ≤3mA
 Long-term stability: ≤±0.2%FS/year
 Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
 Response time: ≤3ms
 Overload pressure: 150%FS
 Cycle life: 500,000 times
 Pressure medium: Non-corrosive liquid or gas
 Pressure connection: G1/4, M20,Other pressure connection is on request
 Electrical connection: Hirschman DIN43650C
 Housing material: 304 Stainless Steel
 Protection class: IP65
 Explosion-proof class: ExiaⅡCT6



Measuring range: 0~600Bar / 0-60Mpa,
 Accuracy: ±0.5%FS, ±0.2%FS,
 Output signal: 4-20mA, 0-5V, 0-10V,
 Supply voltage: 10~36VDC,
