Home    OFF GRID INVERTER    2000W Pure Sine Wave Power Inverter

Product Details

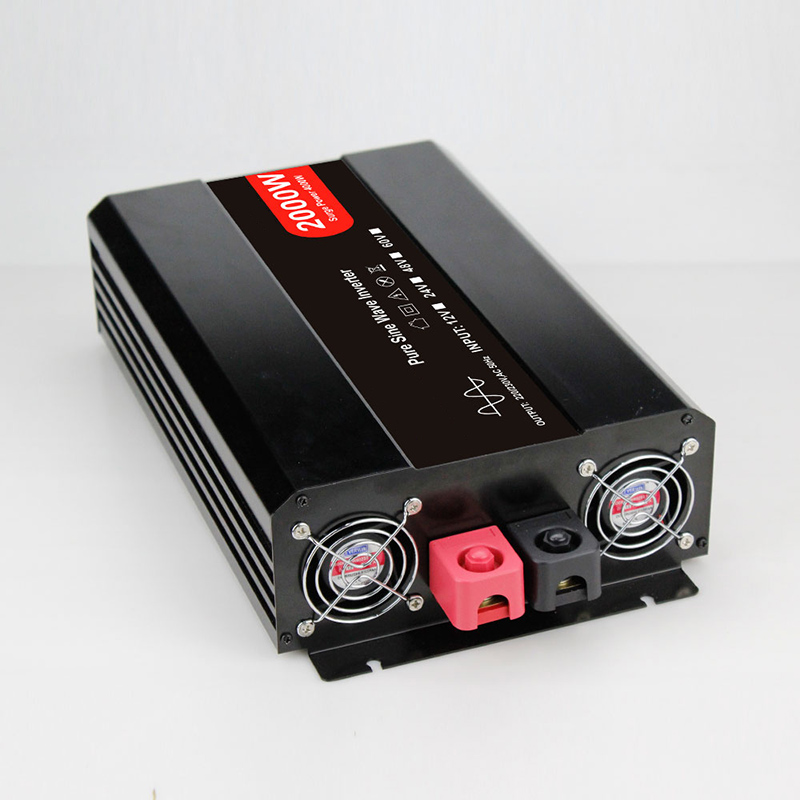

2000W Pure Sine Wave Power Inverter


2000W Pure Sine Wave Power Inverter Parameter


Model: P-2000W
Rated Power: 2000W
Peak Power: 4000W
Pure sine wave output
High efficiency,sufficient power


Model P-2000W-12V P-2000W-24V P-2000W-48V
Rated power 2000W
Peak power 4000W
Input voltage(Range) DC12V(9-15.5V) DC24V(18-31V) DC48V(38-61V)
Output voltage(Single) (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5%
Unload current less than ≤0.7A ≤0.4A ≤0.3A
Output frequency 50Hz or 60Hz
Output waveform Pure Sine Wave
Waveform distortion THD≤3%(Pure resistive Load))
USB 5V,2.1A /
Max.efficiency 90%
Low voltage protection Pre-alarm (alarm off after 1 sound), LED Red light on, voltage contiously reduce and shutdown
Over voltage protection  Pre-alarm (alarm off after 2 sounds), LED Red light on,  shutdown
Over load protection Continuous alarm, LED Red light on, shutdown
Over temperature protection Pre-alarm (alarm off after 3 sounds), tempurature continously rise, LED Red light on, shutdown
Short circuit protection Perfect protection and no damage the circuit
Input reverse polarity protection Fuse burn-out
Low voltage alarm 10.5±0.5V 21±0.5V 42±1V
Low voltage protection 9.5±0.5V 19±0.5V 38±1V
Over voltage protection 15.5±0.5V 31±0.5V 61±1V
Low voltage recover 13±0.5V 24±0.5V 48±1V
Over voltage recover 14V±0.2V 28V±0.5V 54V±1V
Working temperature -10°- +50°
Product Dimension(mm) 396x180x78mm
Packing(mm) 445x240x145mm
Net./gross weight(g) 3935/4676g
Meas./CTN(mm) 520x340x515mm
Gross weight/CTN(g) 18710g
Warranty 12Months

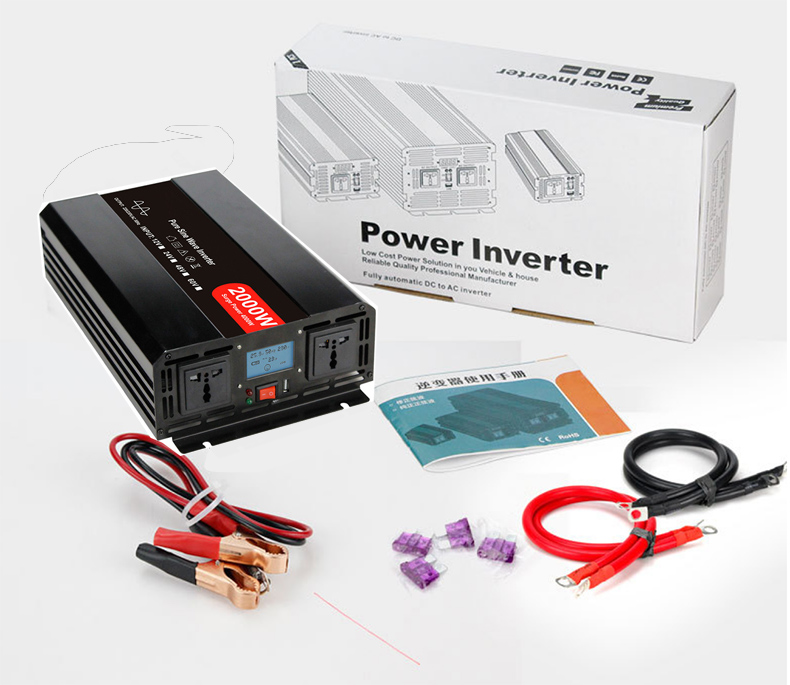

Accessories English Manual*1pc; Pure copper cable*2pcs; Spare fuse*4pcs
Cooling method Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.


Load for 2000W Pure sine wave power inverter

*It's Off Grid, Single Phase.
*Convert DC12V/24V/48V from batteries power into AC100V/110V/120V/220/230/240V power.
*Widely use in household/office, caravan, boat, camping, ambulance, solar project etc.
*Professional manufacturer, OEM/ODM service.
*With perfect protect
