digital bell timer switch KG318S
1. DATA SHEET
Voltage: 220V 50-60HZ
customized: 110V, 12V,24V
Capacity: 25A 250VAC
Display: LCD
Programs: Can set 36 times of bell ring one day.
Mini interval: 1 mins
Hysteresis: 2s/day (25°C)
Average error: 1s/24h, 25°C
Battery power: 2 year
Temp.range: -25°C~+60°C

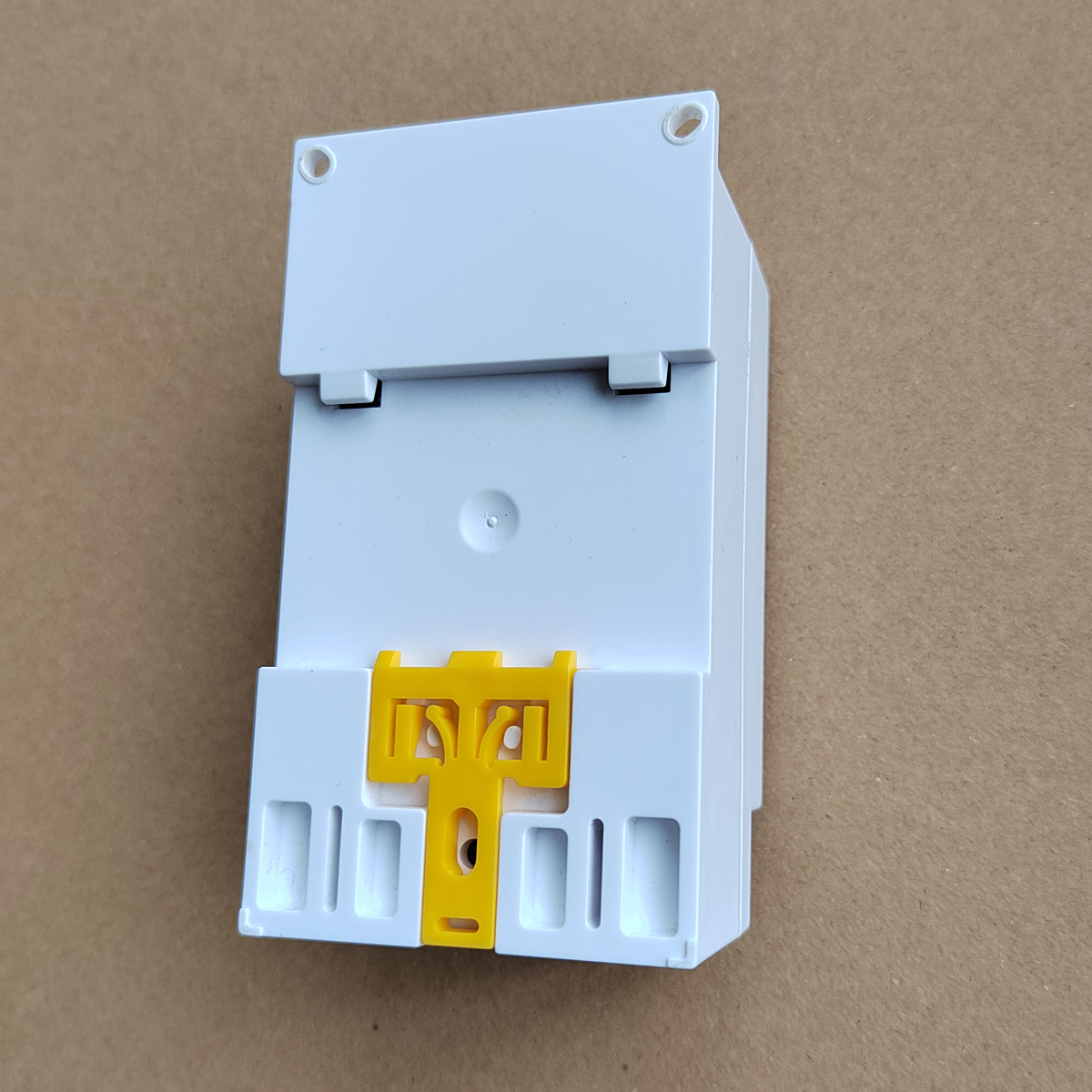

mounting: DIN rail or M3 screws

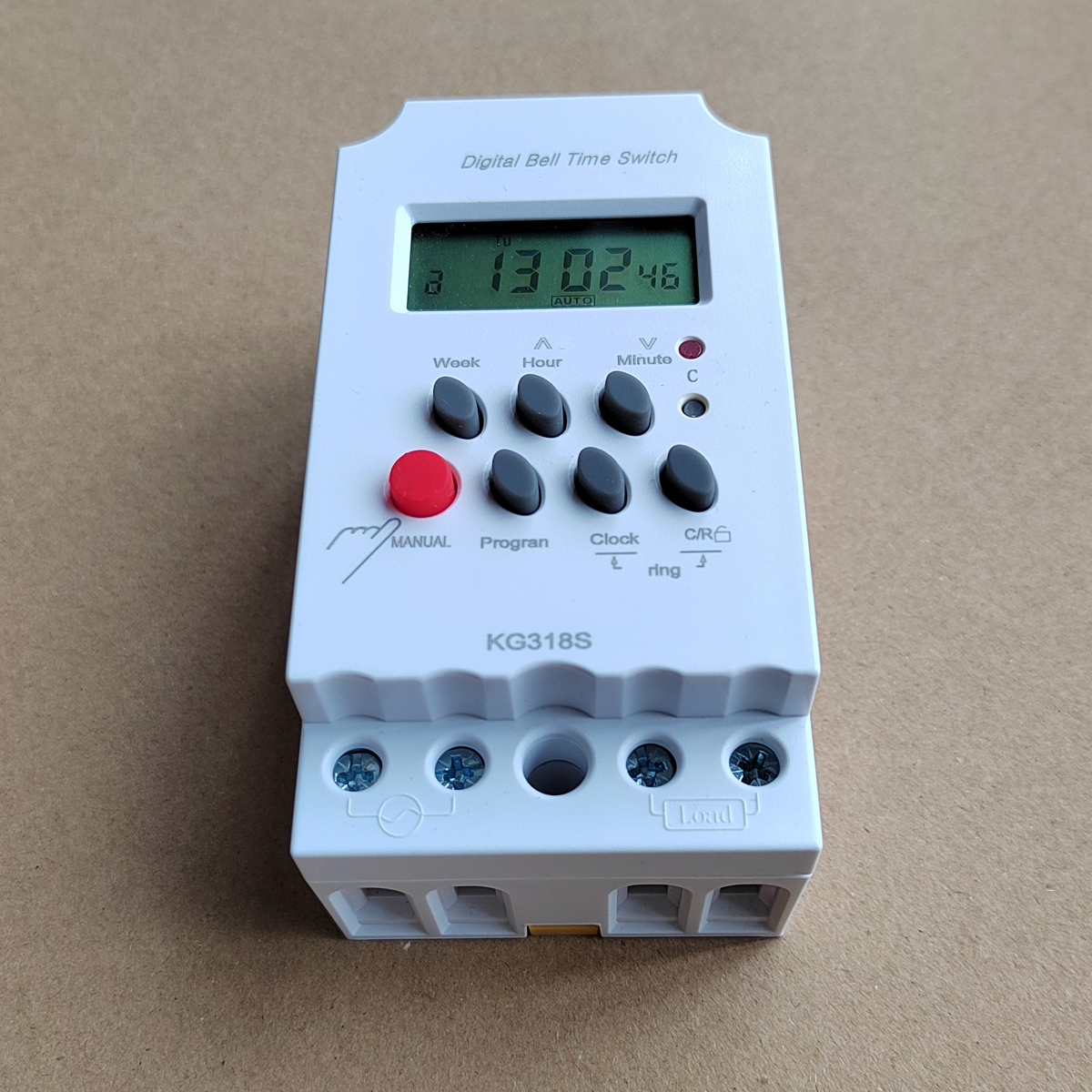

2. FUNCTION OF BUTTONS ON PANEL
1> P: programs reviem or setting programs
2> manual: to select "ON, AUTO or OFF"
3> clock: show the current time or finish time programs setting
4> week：to adjust day or week.
5> Hour： to adjust hour
6> Minute：to adjust minute
7> C : reset timer's setting
8> C/R: reset timer settings or lock display
9> Led: to indicate ON/OFF working status
3. PACKAGE
box pack: 1 timer + 1 manual
carton pack: 100 boxes
LCD display,
36 times of bell ring one day,
automatic controll,
