1-10 Bar adjustable Pressure Switch

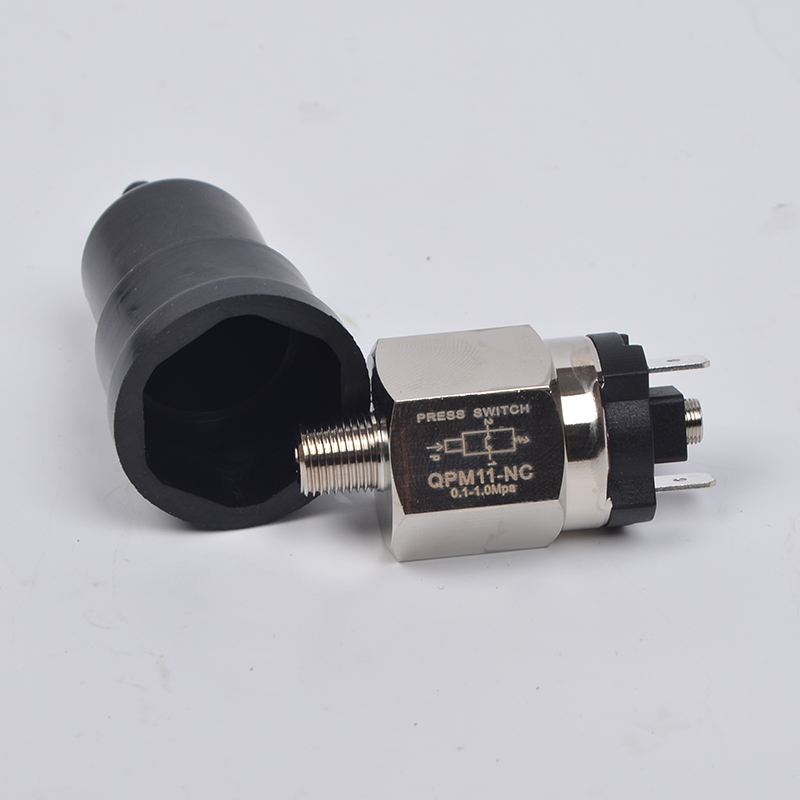

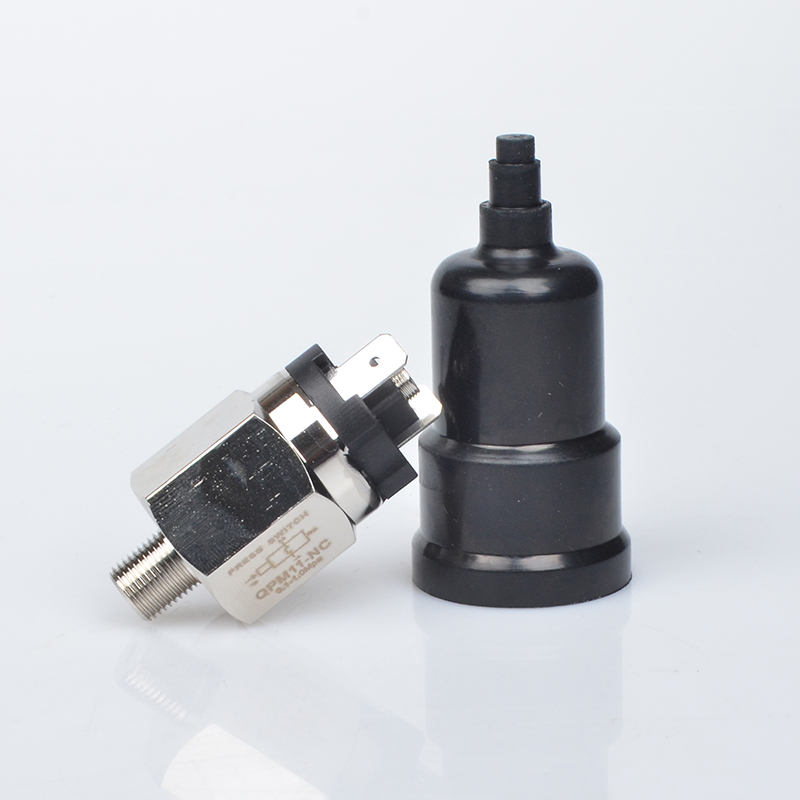

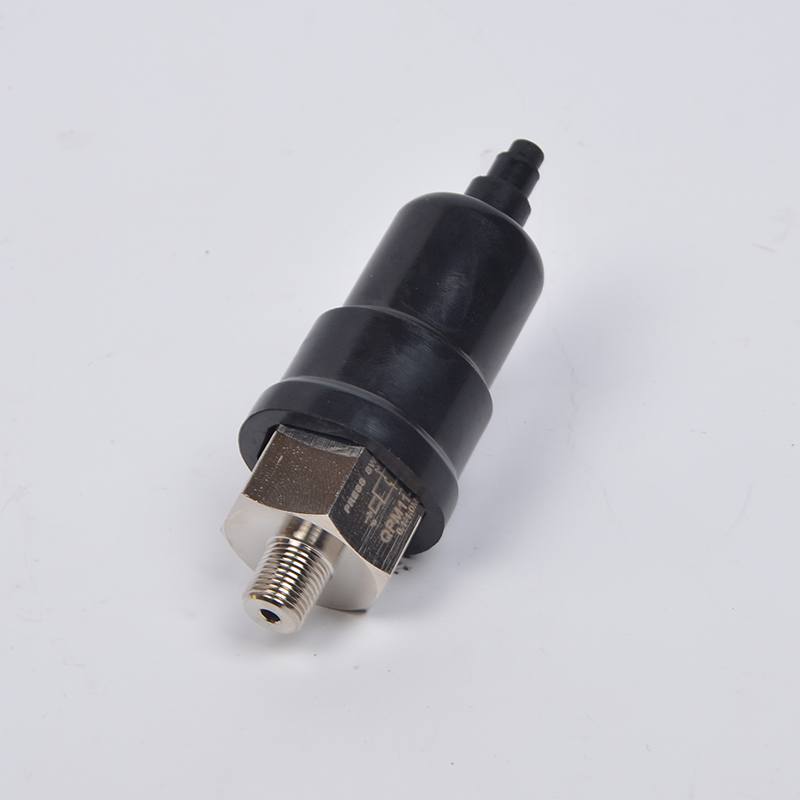

Max 10 bar 1/4 or 1/8 external thread normally open NO / normally closed NC type air pressure switch QPM11NO QPM11NC
Diaphragm adjustable pressure switches
Switching Model: NO (normally open) ; NC (normally closed)
Working Form: Pressure Adjustable
Switch Connection: 1/8 or 1/4 external thread,
Wire connection: 6.35x0.8 spade terminal
Pressure adjustable range: 1 ~10 Bar / 0.1MPA~1MPA
Burst pressure: 20Bar/2.0MPA
Body material: Brass
Diaphragm: NBR
Temperature: -10 ~ +60 degree
Medium: air, water
Rated voltage: 220V,12V, 24V,
Rated current: 0.5A
Mechanical life: 100000 times
IP Protection : IP54 (with rubber shroud)
Adjustable range: 0.1MPA~1MPA
NO (normally open) ; NC (normally closed
1/8 or 1/4 external thread
NO (normally open) ; NC (normally closed
1/8 or 1/4 external thread
